What Is the Difference Between Grille and Louver? Complete HVAC Guide
If you are designing an HVAC, ventilation, fresh-air or exhaust system, you may come across two commonly used air-distribution components: grilles and louvers.
Although both can have horizontal or vertical blades and may look similar, they are not necessarily designed for the same purpose.
Quick answer
A grille is primarily an air terminal used to supply, return or exhaust air within a conditioned space. A louver is commonly used for outdoor air intake, exhaust, weather protection and ventilation openings, although specialized louvers can also be used for air distribution.
ASHRAE identifies grilles as air-distribution devices used in sidewall, ceiling, sill and floor applications, while intake and exhaust louvers are used for outdoor-air openings and ventilation applications.
So, in simple terms:
Grille = mainly controls air entering or leaving an occupied space.
Louver = commonly protects and controls air entering or leaving a building through an outdoor opening.
The correct selection depends on airflow, pressure drop, velocity, weather exposure, location, noise, free area and the required airflow pattern.
What Is a Grille in HVAC?
An HVAC grille is an air terminal device installed at an opening through which conditioned, return or exhaust air moves.
ASHRAE describes a grille as a frame containing vertical or horizontal vanes. Supply grilles can have adjustable blades to control the direction of airflow.
Depending on the application, grilles can be used for:
- Supply air
- Return air
- Exhaust air
- Transfer air
- Floor air distribution
- Wall-mounted air distribution
- Ceiling applications
A grille can therefore be part of the final connection between the duct system and the occupied space.
Simple example
AHU → Supply Duct → Supply Grille → Office
or:
Office → Return Grille → Return Duct → AHU
What Is a Louver in HVAC?
A louver is an assembly of blades designed to control airflow through an opening while providing additional functions depending on its application.
Louvers are commonly used at:
- Fresh-air intake openings
- Exhaust-air openings
- Mechanical rooms
- Plant rooms
- Building façades
- Generator rooms
- HVAC equipment rooms
- Ventilation openings
External louvers can also help prevent rain, debris and unwanted outdoor elements from entering the ventilation opening when appropriately designed.
ASHRAE provides specific guidance for preliminary sizing of air intake and exhaust louvers, demonstrating that louvers are an important part of ventilation and outdoor-air systems.

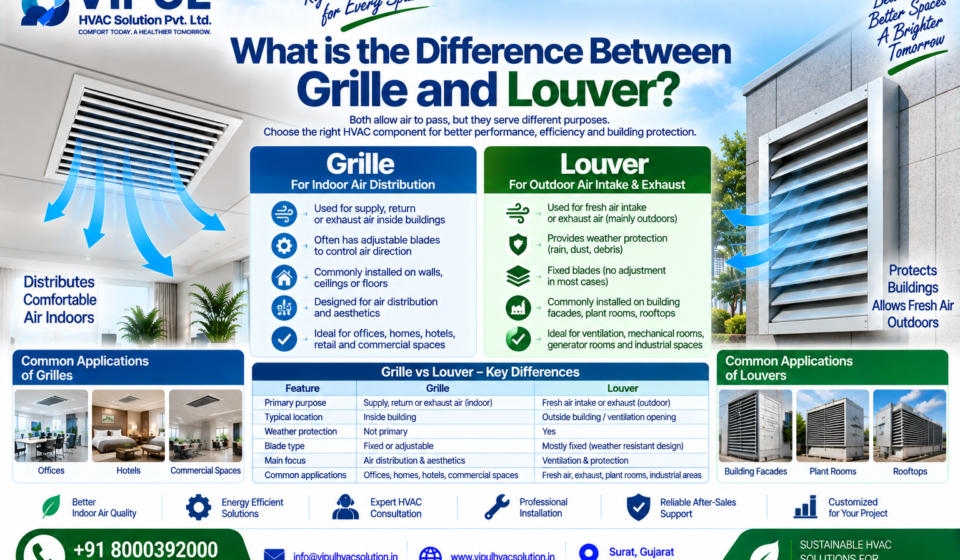

Grille vs Louver: Quick Comparison
| Feature | Grille | Louver |
|---|---|---|
| Main purpose | Air distribution/return/exhaust | Air intake/exhaust/weather protection |
| Typical location | Inside occupied spaces | Building exterior or ventilation opening |
| Supply air | Common | Application dependent |
| Return air | Very common | Less typical |
| Outdoor air intake | Not usually the primary choice | Common |
| Exhaust | Common | Common |
| Weather protection | Limited | Common design requirement |
| Air direction control | Often adjustable | Usually controlled by blade geometry |
| Appearance | Interior architectural | Exterior/industrial |
| Weather resistance | Usually not primary | Often important |
| Typical application | Offices, homes, commercial spaces | Fresh air, exhaust, plant rooms |
| Duct connection | Common | Common |
| Blade configuration | Fixed or adjustable | Fixed, drainable or specialized designs |
| Selection parameters | CFM, throw, velocity, noise | CFM, velocity, pressure drop, free area, weather exposure |
7 Key Differences Between Grille and Louver
1. Primary Purpose
The first major difference is what the component is intended to do.
Grille
A grille is commonly used to distribute or collect air within a building.
For example:
Supply duct → grille → conditioned room
The grille can help control:
- Air direction
- Throw
- Air velocity
- Air distribution
ASHRAE notes that adjustable-blade grilles can control airflow in horizontal and/or vertical planes.
Louver
A louver is commonly associated with building ventilation openings.
For example:
Outdoor air → intake louver → FAHU/AHU
or:
Exhaust fan → duct → exhaust louver → outdoor
2. Location
Grilles are commonly installed inside buildings
Typical locations include:
- Walls
- Ceilings
- Floors
- Sills
- Return-air openings
ASHRAE specifically identifies sidewall, ceiling, sill and floor applications for grilles.
Louvers are commonly installed at building openings
Examples include:
- External walls
- Mechanical rooms
- Plant rooms
- Rooftops
- Fresh-air intake openings
- Exhaust openings
This makes weather and environmental exposure an important consideration when selecting an external louver.
3. Airflow Direction
A grille can be designed to control the direction of the supply air.
For example, an adjustable double-deflection grille can control airflow in both horizontal and vertical directions.
This is useful when the objective is to deliver conditioned air into an occupied zone.
ASHRAE describes single- and double-deflection grille configurations and how their blade arrangements affect airflow direction.
Louvers are generally designed around the airflow and opening requirements of intake or exhaust applications.
4. Weather Protection
This is one of the most important differences.
An external louver may need to deal with:
- Rain
- Wind
- Dust
- Debris
- Outdoor temperature
- Corrosion
- Insects
- Pressure drop
A normal interior grille is generally not designed to provide the same level of weather protection.
Therefore, installing an ordinary indoor grille as an external fresh-air intake may not provide the required performance.
5. Free Area and Pressure Drop
Both grilles and louvers need to be selected according to airflow requirements.
However, external ventilation louvers require careful consideration of:
- Gross area
- Free area
- Face velocity
- Pressure drop
- Airflow
- Weather conditions
ASHRAE provides preliminary sizing guidance for air intake and exhaust louvers based on airflow and louver velocity.
Why is pressure drop important?
If the grille or louver creates excessive resistance, the fan may need to work harder.
This can affect:
- Fan energy
- Airflow
- System performance
- Noise
- Operating cost
Therefore:
Do not select a grille or louver based only on its physical size.
6. Appearance and Architectural Requirements
Interior grilles are often selected to match:
- Ceiling
- Wall
- Interior design
- Lighting
- Furniture
- Architectural finishes
External louvers may be selected to coordinate with:
- Building façade
- Exterior cladding
- Mechanical-room openings
- Rooftop equipment
- Industrial architecture
For commercial projects, appearance can therefore be an important part of terminal selection.
7. Application
Typical grille applications
- Offices
- Homes
- Hotels
- Hospitals
- Retail stores
- Restaurants
- Meeting rooms
- Commercial buildings
- Industrial offices
Typical louver applications
- Fresh-air intake
- Exhaust-air discharge
- Mechanical rooms
- Generator rooms
- Industrial ventilation
- Parking ventilation
- Plant rooms
- Rooftop ventilation
- HVAC equipment rooms
Supply Air Grille vs Return Air Grille
Not every grille performs the same function.
Supply Air Grille
A supply grille delivers conditioned air into the space.
Example:
AHU → Duct → Supply Grille → Room
It is selected based on:
- Airflow
- Throw
- Velocity
- Noise
- Room geometry
- Mounting location
Return Air Grille
A return grille collects air from the occupied space.
Example:
Room → Return Grille → Return Duct → AHU
Return grilles typically have different airflow requirements from supply grilles.
Fresh Air Louver
A fresh-air louver is used to allow outdoor air to enter a ventilation or HVAC system.
Typical arrangement:
Outdoor Air
↓
Fresh-Air Louver
↓
Damper
↓
Filter
↓
FAHU/AHU
↓
Supply Duct
↓
Occupied Space
VIPUL’s ventilation solutions include fresh-air handling units, supply/exhaust fans, filters, dampers, heat-recovery systems and other air-distribution components.
Exhaust Louver
An exhaust louver allows unwanted or contaminated air to leave a building.
For example:
Kitchen/Industrial Area
↓
Exhaust Duct
↓
Exhaust Fan
↓
External Louver
↓
Outdoor
Applications can include:
- Kitchens
- Toilets
- Industrial areas
- Mechanical rooms
- Generator rooms
- Parking areas
- Manufacturing facilities
The exact louver design depends on airflow, discharge location, weather exposure and pressure requirements.
Grille vs Louver for Fresh Air
If the requirement is fresh-air intake through an external building wall, an appropriately designed intake louver is generally the relevant type of component.
A typical arrangement could be:
Outside Air → Louver → Damper → Filter → FAHU → Duct → Room
The louver needs to be evaluated for:
- Airflow
- Face velocity
- Free area
- Pressure drop
- Rain penetration
- Location
- Maintenance access
Grille vs Louver for Exhaust Air
For external exhaust discharge, a suitable exhaust louver may be used.
The design should consider:
- Exhaust airflow
- Discharge velocity
- Pressure drop
- Wind conditions
- Recirculation risk
- Location of nearby air intakes
- Building surroundings
For industrial or contaminated-air applications, the exhaust arrangement should be designed according to the specific contaminant and applicable project requirements.
Can a Louver Be Used as a Grille?
Sometimes the terminology can overlap, but you should not assume that every louver can replace every grille.
ASHRAE itself uses specific categories for grilles, diffusers and nozzle/drum-louver devices depending on their airflow function.
The important question is:
What is the required airflow function?
If you need indoor supply-air distribution, a grille or diffuser may be appropriate.
If you need an exterior fresh-air intake, an intake louver may be appropriate.
If you need exhaust discharge, an exhaust louver may be appropriate.
Can a Grille Be Used as an External Louver?
A standard interior grille should not automatically be substituted for an exterior louver.
An external louver may need features that address:
- Rain
- Wind
- Outdoor exposure
- Corrosion
- Insects
- Drainage
- Pressure drop
Therefore, the component should be selected according to the application and manufacturer’s performance data.
Grille vs Louver: Which One Is Better?
There is no universal winner.
The correct choice depends on the application.
Choose a grille when you need:
- Indoor supply-air distribution
- Return-air collection
- Indoor exhaust
- Directional airflow control
- Architectural air terminals
Consider a louver when you need:
- Outdoor fresh-air intake
- External exhaust
- Weather protection
- Mechanical-room ventilation
- Building façade ventilation openings
So the better question is:
Which air terminal is appropriate for the airflow function and installation location?
How to Select the Correct Grille or Louver
Before selecting the component, determine:
1. Airflow
What is the required CFM?
2. Application
Is it:
- Supply?
- Return?
- Exhaust?
- Fresh air?
3. Location
Is the device:
- Indoor?
- Outdoor?
- Ceiling?
- Wall?
- Floor?
- Façade?
4. Air Velocity
What face velocity is acceptable?
5. Pressure Drop
What pressure drop can the fan system accommodate?
6. Noise
Is the space:
- Office?
- Hospital?
- Hotel?
- Industrial?
- Restaurant?
7. Weather Exposure
For external louvers, evaluate:
- Rain
- Wind
- Dust
- Corrosion
8. Material
Possible materials include:
- Aluminium
- GI/galvanized steel
- Stainless steel
- Other project-specific materials
9. Blade Configuration
Consider:
- Fixed blade
- Adjustable blade
- Single deflection
- Double deflection
- Drainable/weather louver
10. Maintenance
Ensure access for:
- Cleaning
- Inspection
- Filter maintenance where applicable
- Damper maintenance
Grille and Louver in a Complete HVAC System
A commercial HVAC system may use both grilles and louvers.
For example:
Fresh Air System
Outdoor → Intake Louver → FAHU → Supply Duct → Grille → Room
Return Air System
Room → Return Grille → Return Duct → AHU
Exhaust System
Room → Exhaust Grille → Exhaust Duct → Exhaust Fan → External Louver
Therefore, grilles and louvers are not necessarily competing products.
They can be different components within the same HVAC system.
Grilles, Louvers and Diffusers: What’s the Difference?
There is often confusion between these three terms.
| Component | Primary Function |
|---|---|
| Grille | Supply, return or exhaust air |
| Louver | Outdoor intake/exhaust and weather protection |
| Diffuser | Designed to distribute air and promote mixing in the occupied space |
ASHRAE identifies grilles and diffusers as different categories of air-distribution equipment, with different applications and airflow patterns.
VIPUL’s ductwork offering includes dampers, grilles, diffusers, slot diffusers, square diffusers and round diffusers as part of air-distribution systems.
Common Mistakes When Selecting Grilles and Louvers
Mistake 1: Selecting Based Only on Size
A 600 × 600 mm grille does not automatically mean it can handle any airflow.
Airflow and performance data matter.
Mistake 2: Ignoring Pressure Drop
High pressure drop can affect fan performance and energy consumption.
Mistake 3: Using an Indoor Grille Outdoors
Outdoor applications require appropriate weather and environmental considerations.
Mistake 4: Ignoring Noise
A high face velocity may create unwanted noise.
Mistake 5: Ignoring Air Distribution
A correctly sized grille can still produce poor comfort if its throw and discharge pattern are inappropriate.
Mistake 6: Ignoring Maintenance
The component must remain accessible for cleaning and inspection.
Mistake 7: Selecting Without Airflow Calculation
The required CFM should be established before final selection.
Why Grille and Louver Selection Matters
A properly designed air-distribution system can help achieve:
- Better airflow
- Improved thermal comfort
- Appropriate air mixing
- Lower pressure losses
- Reduced noise
- Better HVAC performance
- Improved ventilation
- More predictable system operation
ASHRAE emphasizes that selection and placement of air outlets should consider the airflow pattern and occupant thermal comfort.
Grille and Louver Solutions by VIPUL HVAC
VIPUL HVAC Solution Pvt. Ltd. provides HVAC ductwork and air-distribution solutions for commercial, industrial and institutional applications.
Its ductwork services include:
- Duct design
- Shop drawings
- Duct fabrication
- Duct installation
- Air balancing
- Testing
- Thermal insulation
- Acoustic treatment
- Dampers
- Grilles
- Diffusers
- Slot diffusers
- Square diffusers
- Round diffusers
VIPUL’s official ductwork page describes duct systems designed for balanced airflow, reduced losses and efficient HVAC performance.
For ventilation projects, the company also works with:
- Fresh-air handling units
- Supply fans
- Exhaust fans
- Filters
- Dampers
- Heat-recovery systems
- VAV systems
- Air-distribution components
Why Choose VIPUL HVAC?
For a professional HVAC project, selecting a grille or louver should be part of the overall air-distribution design, not an isolated product decision.
VIPUL HVAC can support projects involving:
- HVAC design
- Heat-load calculations
- Ductwork design
- Air-distribution planning
- Fresh-air systems
- Exhaust systems
- AHUs
- FAHUs
- Ventilation systems
- Grilles and diffusers
- Dampers
- Air balancing
- Testing
- Commissioning
- HVAC maintenance
The company provides HVAC engineering and project execution support for commercial and industrial applications.
Frequently Asked Questions
What is the main difference between a grille and a louver?
A grille is commonly used as an indoor air terminal for supply, return or exhaust air, while a louver is commonly used for outdoor air intake or exhaust and may provide weather protection.
Is a grille the same as a louver?
No. Although their blade construction can look similar, their design purpose and application can be different.
Which is used for fresh-air intake?
An appropriately designed fresh-air intake louver is commonly used for outdoor-air openings.
Which is used for return air?
A return-air grille is commonly used to collect air from an occupied space and return it to the HVAC system.
Can a grille be used for exhaust?
Yes. Grilles can be used for exhaust-air applications depending on the design.
Can a louver be used for exhaust?
Yes. Exhaust louvers are commonly used for outdoor discharge from ventilation systems.
Which is better, grille or louver?
Neither is universally better. The correct choice depends on airflow function, location, weather exposure, pressure drop, noise and system design.
What information is required to select a grille or louver?
Important parameters include airflow/CFM, installation location, face velocity, pressure drop, airflow pattern, noise requirements, material and environmental exposure.
Are grilles and louvers part of ductwork?
They can be. They are commonly connected to or integrated with ductwork and form part of the overall air-distribution or ventilation system.
Conclusion
The difference between a grille and a louver is primarily related to application, location and airflow function.
Grille
Mainly used for indoor supply, return or exhaust air distribution.
Louver
Commonly used for outdoor air intake, exhaust and ventilation openings, often with weather-related requirements.
A professional HVAC design should consider CFM, face velocity, pressure drop, airflow pattern, noise, location, weather exposure and maintenance before selecting either component.
In many HVAC projects, you don’t have to choose between the two—the same building may require both grilles and louvers at different points in the air-distribution system.
Need HVAC ductwork, ventilation, grille, louver or air-distribution solutions?
Contact VIPUL HVAC Solution Pvt. Ltd.
📞 +91 8000392000
📧 info@vipulhvacsolution.in
🌐 vipulhvacsolution.in
Recommended Links:
- Duct Work System
- Fresh Air Ventilation System
- Fresh Air Ventilation System for Office & Home
- Air Handling Units (AHU)
- HVAC Turnkey Services Gujarat
- AHU Supplier in India
- Commercial HVAC Solutions
- Ventilation Systems
