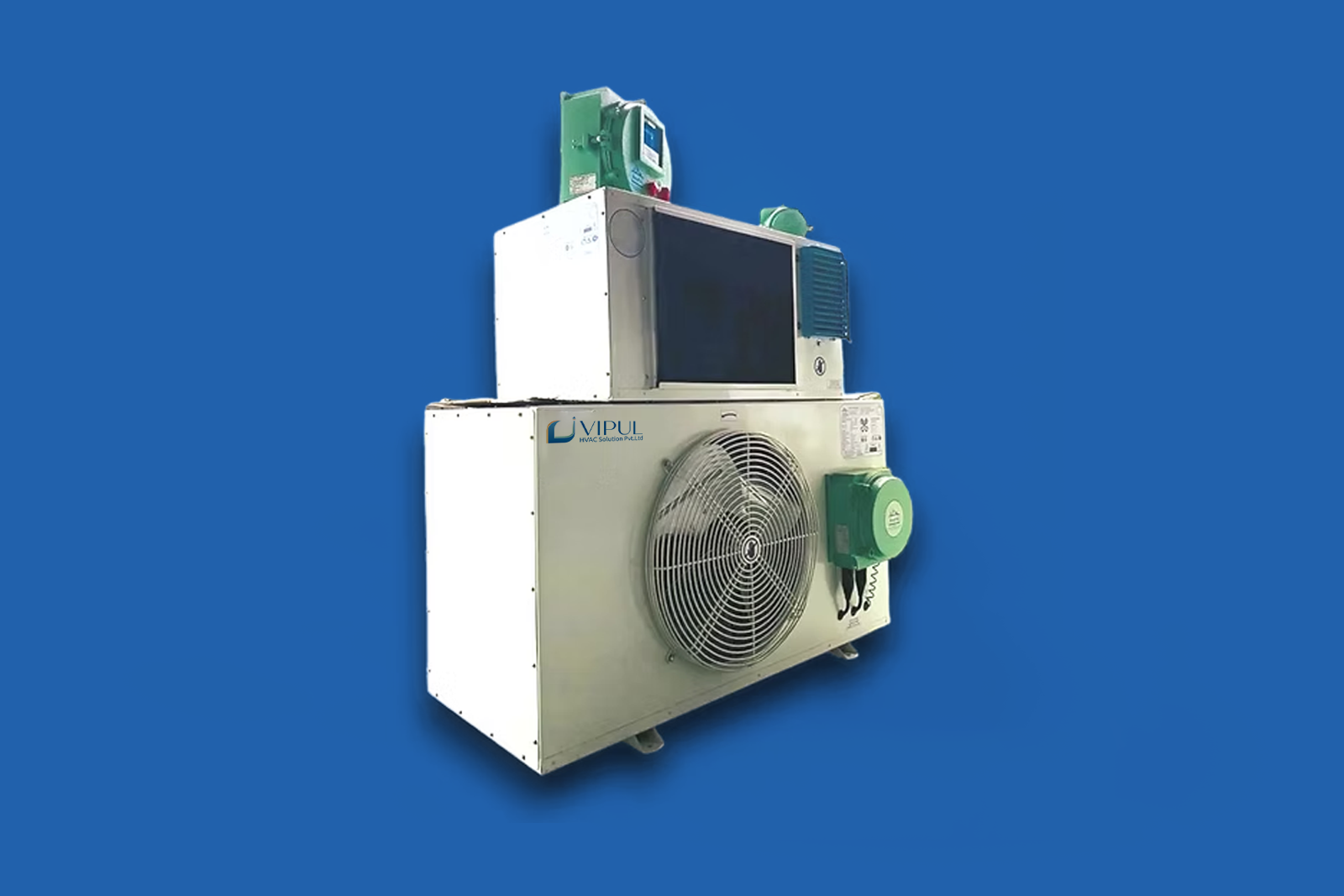

Flame Proof Ac / Explosion Proof Ac
Home >Flame Proof Ac / Explosion Proof Ac
The most Efficient Explosion proof / FLP refrigeration system with durability unmatched. Atmospheres : Gas Group IIA, IIB and IIC, Zone [1, 2, 21, 22] Temp Class T6 Upto IP66 CIMFR No : IN/CIMFR/TR20/2895 With all Valid TR and Certification
All Products
Explosion proof / Flameproof Air conditioner and Refrigerating Units CIMFR / PESO Certified
Comfort is Just a Click Away!
need any help ?
24/7 direct call
+91 800-0392-000
info@vipulhvacsolution.in
TRUELY EXPLOSION PROOF
Specifications
1. High & Low Pressure Safety Switch
The system is equipped with High Pressure and Low Pressure Safety Switches to protect the refrigeration system from abnormal pressure conditions. These switches help prevent compressor damage and improve overall system safety and reliability.
2. Overload Relay / Safety Protection
An Overload Relay provides protection against excessive electrical current and motor overload. It helps protect the compressor and electrical components from overheating and damage caused by abnormal operating conditions.
3. Liquid Injector & Thermistor Protection
The system incorporates a Liquid Injection mechanism with thermistor-based temperature monitoring. This helps maintain suitable operating temperatures and provides additional protection during high-load or high-temperature conditions.
4. Single Phasing & Reverse Phasing Protection
A Single Phasing and Reverse Phasing Protection (SPP) Switch protects the equipment against incorrect electrical phase conditions. It helps prevent motor/compressor damage caused by phase failure, phase reversal, or improper power supply.
5. Aluminium Four-Blade Impeller Fan
The unit features an Aluminium Four-Blade Impeller Fan designed for efficient airflow and reliable operation. The lightweight and durable aluminium construction helps provide effective heat dissipation and long-term performance.

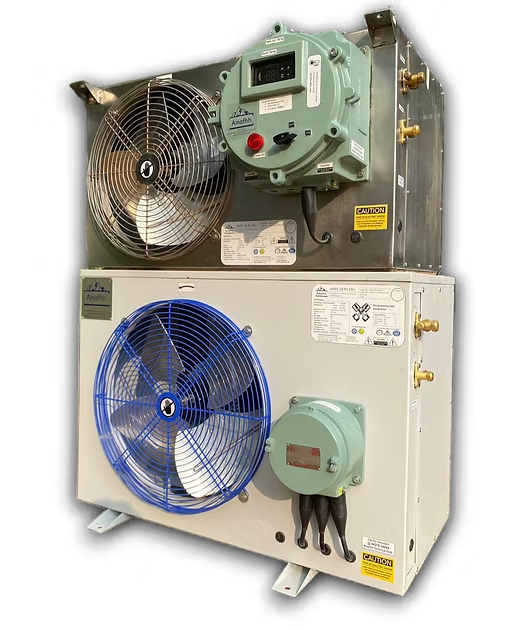

Axial Fan Type Split Units [AMFC18R1SA to AMFC420S3SA] For Hazardous Material Storage and Ailed Application
- Robust Filter less model Which avoids accumulation of any foreign particles on heat exchangers
- SS 304 / SS 316 IDU Cabinet Construction
- Précised Difference of 1°c
- GI Powder Coated Outer Body [Condensing Unit]
- Alarm and Sequential timer Features
- Air Cooled / Water-cooled optional models
- Independent JB for Outdoor and Indoor for Ease of installation and Maintainance
- Microprocessor based Temperature Controller with RS485 Communication port.
- Capacity From 1.5tr to 17.5tr

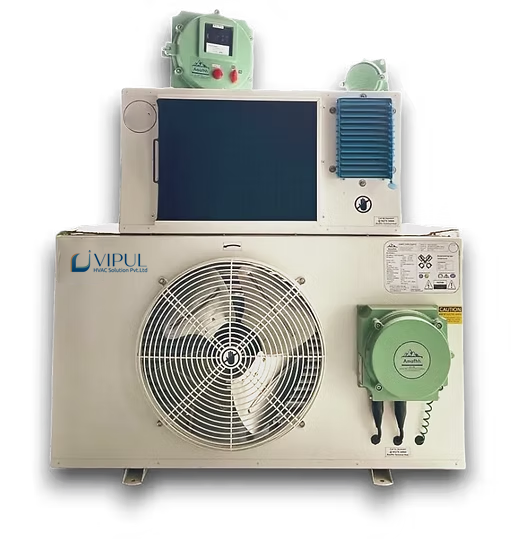

Blower Type Split Ref Units [AMFC12R1SB to AMFC36R3SB] For human Occupancy and Plant operating Offices
- Indoor unit that Hangs on the High Wall,
- With no Copper tube, Cable, Drain pipe Visible in the room.
- Comes with a remote control to operate the units.
- A manual / Automatic grill swing option avaible
- Filter of 5 / 10 microns, with SS Frame and Nylon mesh
- Backward Curved Centrifugal blower for silent operations
- Epoxy powder coat Body | Copper tube Copper Fins Model for Marine and offshores application
- Capacity : 1tr to 3tr
- Reciprocating hermetic Compressor with POE Oil.

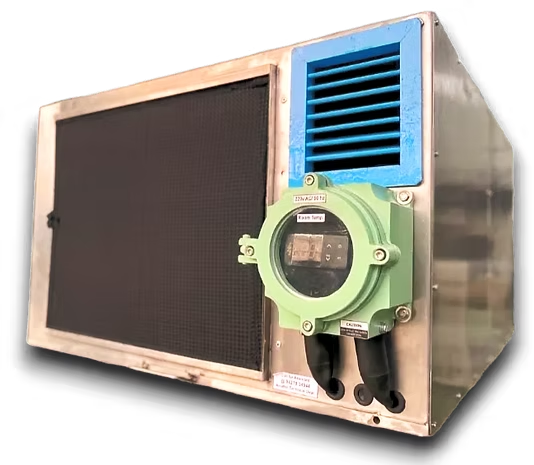

FLP Window AC with Cabinet [ AMFC12R1WB to AMFC36S3WB ] For human Occupancy and Plant operating Offices
- Plug and Play type model
- Comes with a remote control to operate the units without any hustle
- FR Grade air filter and grill
- Marine Epoxy Painted Body with all SS304 Fittings and Blower Housing
- 440v / 230v / 110v [50hz & 60hz] power option
- 50 to 55 Db low Noise generation
- Easy to Install with Folding Bracket

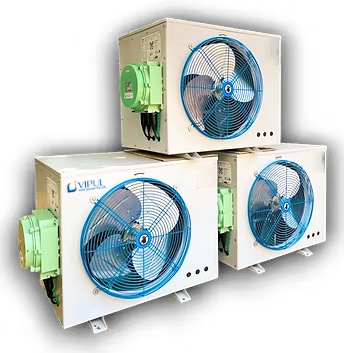

2tr to 17.5tr FLP Split Type Condensing Unit [AMFC24-420/R/S3CDU]
- Compatible with AHU, Fan coil Unit, DX Type Ductable Unit or Any other Evaporators
- With Low Speed 15" to 24" Condensing Axial Fan lateral flow for better heat liberation and efficient Performance
- With Independent FLP Control Panel and Independent RTD Sensor
- GI Powder Coated Outer Body.
- Easy to Install with Flare type 3way Service Valve [Suction and liquid] along with the Capillary design

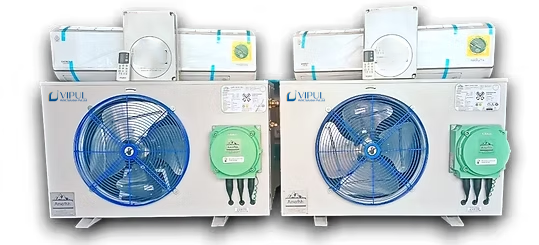

Semi / Partial FLP Split Type AC AMFC12-36/R/S3PS
- Either Indoor Unit or Outdoor unit Complies with the Flameproof Criteria / hazardous zone.
- We have the Non FLP Units respectively [Either CDU or IDU] to minimize the inventory and installation cost.
- With FLP Outdoor and non FLP Domestic type Indoor unit, With the option of Split type, Cassette,
- One can have a fancy decent look in the office / Shelter rooms with all functions non compromised.
- Ductable type IDU with Flameproof Outdoor Unit can just simplify all HVAC Needs.
What is a Flameproof AC?
A Flameproof AC is designed for use in hazardous environments where explosion-proof or flameproof equipment is required. The catalogue specifies applications for Gas Groups IIA, IIB and IIC and Zones 1, 2, 21 and 22, with temperature classification T6.
What capacities are available in the Flameproof AC range?
The catalogue offers different models and capacities. The axial fan type split units range from 2 TR to 17.5 TR, while the FLP window and blower-type split units are available from 1 TR to 3 TR.
What safety features are included in the Flameproof AC?
The units include high- and low-pressure safety switches, overload relays, liquid injection for maintaining T6 temperature class, and single/reverse phasing protection.
What materials are used for the indoor unit and drain tray?
The catalogue specifies SS 304 / SS 316 material of construction for a rust-free indoor unit and drain tray.
What refrigerants are available for the Flameproof AC?
The technical data lists R407C as the refrigerant, with R134a available as an optional refrigerant for the listed models.
