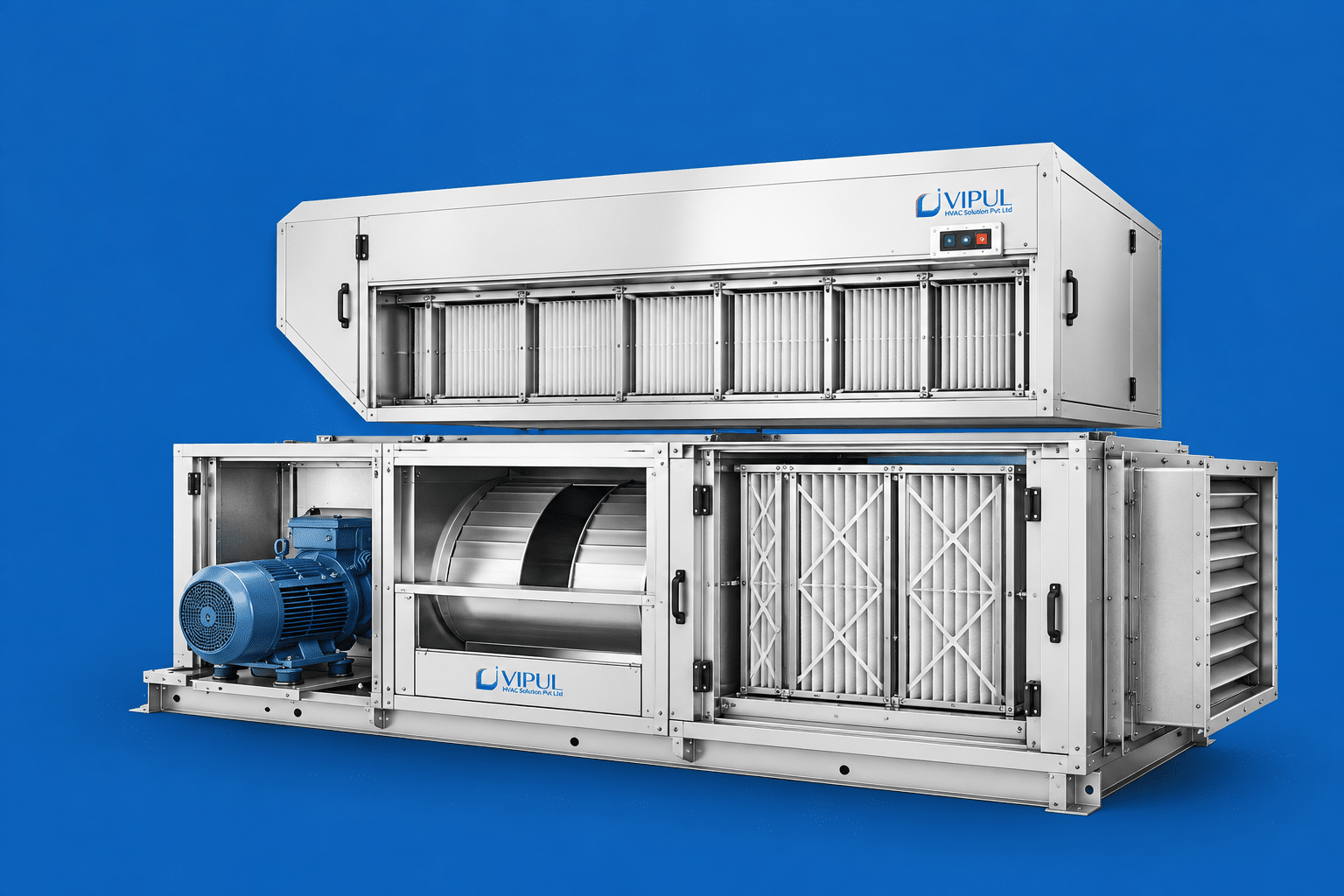

AHU for Hospitals

What Is an AHU in a Hospital?

An Air Handling Unit (AHU) is a central HVAC equipment system used to condition and distribute air throughout a building. In hospitals, AHUs are designed with additional attention to filtration, fresh-air ventilation, humidity control, air distribution, pressure relationships and maintainability.

A hospital AHU may include:

• Fresh-air and return-air sections

• Mixing section where applicable

• Pre-filtration

• Fine filtration

• Cooling coil

• Heating or reheat arrangement where required

• Fan and motor assembly

• Humidification or dehumidification provisions where required

• Drain pan and condensate management

• UV or other air-treatment technologies where specifically designed

• HEPA filtration, particularly for areas requiring high-efficiency particulate filtration

• Differential-pressure monitoring

• Access doors for inspection and maintenance

• Controls and BMS integration

The exact AHU configuration should be determined according to the room function, applicable healthcare standards, infection-control requirements and project design criteria.

Hospital HVAC Design Requirements

Hospital HVAC design is not simply about cooling a building. The HVAC system must be designed around the clinical function of each area.

A hospital may contain multiple zones with different requirements, including:

• Operation theatres

• ICU and critical-care areas

• Isolation rooms

• Patient rooms

• General wards

• Emergency departments

• Laboratories

• Pharmacies

• CSSD areas

• Recovery rooms

• Diagnostic areas

• Procedure rooms

• Waiting areas

• Medical offices

• Sterile and controlled environments

Each area may require a different combination of ventilation, filtration, temperature, humidity and pressure-control strategies.

Key hospital HVAC design considerations

1. Temperature Control

Maintaining appropriate temperature conditions is important for patient comfort, staff working conditions and the operation of medical facilities.

Hospital HVAC systems should provide stable temperature control rather than simply maximum cooling capacity.

2. Humidity Control

Humidity affects comfort, materials, equipment and microbial-control strategies.

Hospital HVAC design should therefore consider:

• Outdoor humidity

• Internal moisture loads

• Air-conditioning coil performance

• Dehumidification requirements

• Reheat requirements

• Seasonal operating conditions

The required temperature and relative humidity range should be established according to the applicable room function and project standard.

3. Fresh Air & Ventilation

Adequate outdoor air is an important part of healthcare ventilation.

The HVAC design should evaluate:

• Required outdoor airflow

• Occupancy

• Room function

• Exhaust requirements

• Air changes

• Pressure relationships

• Outdoor air quality

• Energy considerations

Fresh air requirements should be calculated according to applicable healthcare standards and the specific room application.

4. Air Changes Per Hour (ACH)

Air Changes Per Hour, commonly abbreviated as ACH, describes how many times the equivalent volume of room air is supplied or removed over one hour.

ACH requirements are not identical for every hospital room. The required airflow should be established based on the room function and applicable healthcare design standards.

For this reason, hospital HVAC design should not use a single ACH value throughout an entire hospital.

5. Pressure Relationships

Pressure control is particularly important in areas where airflow direction must be controlled.

Depending on the clinical application, rooms may require:

• Positive pressure

• Negative pressure

• Neutral pressure

• Pressure monitoring

For example, an isolation room may require a controlled negative-pressure strategy, while certain clean or protected areas may require positive-pressure conditions.

The pressure strategy must be determined by the hospital’s infection-control requirements and applicable standards.

HEPA Filtration in Hospital AHUs

HEPA (High-Efficiency Particulate Air) filtration is used where high-efficiency removal of airborne particulate matter is required.

HEPA filters can provide very high particulate filtration efficiency when correctly selected, installed and maintained.

However, installing a HEPA filter alone does not create a complete hospital infection-control HVAC system.

A properly engineered system should consider:

• Filter efficiency

• Filter face velocity

• Pressure drop

• Fan capacity

• Filter housing

• Gasket sealing

• Leakage control

• Access for filter replacement

• Differential-pressure monitoring

• Testing and certification

• Overall airflow balance

HEPA filtration may be incorporated into AHUs or terminal filtration arrangements depending on the room and project design.

Hospital AHU Filtration Stages

A hospital AHU may use multiple stages of filtration.

A typical filtration strategy can include:

Outdoor/Return Air → Pre-Filter → Fine Filter → Cooling Coil → Fan → HEPA/Terminal Filtration Where Required → Conditioned Space

The actual arrangement varies according to the HVAC design.

Pre-Filtration

Pre-filters help protect downstream components and higher-efficiency filters by removing larger airborne particles.

Fine Filtration

Fine filters provide additional particulate filtration and help reduce the particle load reaching downstream components.

HEPA Filtration

HEPA filters are used where the design requires very high-efficiency particulate filtration.

The filter selection should be based on the intended application, airflow, pressure drop and applicable healthcare requirements.

AHU for Operation Theatres

Operation theatres require carefully controlled HVAC systems because of their clinical environment.

A suitable OT HVAC design may address:

• Temperature control

• Humidity control

• Fresh-air supply

• Filtration

• Air distribution

• Pressure relationship

• Air changes

• Low-level contamination-control strategies

• HEPA filtration where specified

• Air balancing

• Monitoring and controls

The AHU should be designed specifically for the operation theatre rather than simply adapting a standard commercial AHU.

AHU for ICU & Critical Care Areas

ICUs require reliable environmental control because they serve critically ill patients.

Hospital HVAC design for ICU areas may include:

• Controlled temperature

• Humidity management

• Appropriate ventilation

• Filtration

• Fresh-air supply

• Exhaust strategy

• Pressure control where required

• Continuous monitoring

• BMS integration

The final design should follow the healthcare facility’s clinical requirements and applicable standards.

AHU for Isolation Rooms

Isolation rooms require careful airflow and pressure management.

Depending on the isolation application, the HVAC system may be designed to maintain a controlled pressure relationship with adjacent spaces.

Important considerations include:

• Dedicated exhaust or appropriate exhaust strategy

• Negative-pressure control where required

• Adequate outdoor air

• Airflow direction

• Door undercut and room leakage considerations

• Pressure monitoring

• Appropriate filtration

• Safe exhaust discharge

The design should be coordinated with the hospital infection-prevention and control team.

Hospital Air Quality Requirements

Indoor air quality is a major consideration in healthcare facilities.

Hospital HVAC systems should consider:

Particulate Control

Filtration helps reduce airborne particulate concentrations.

Outdoor Air Quality

The quality of outdoor air entering the building should be considered when selecting filtration and ventilation strategies.

CO₂ Monitoring

CO₂ can be used as an indicator of ventilation conditions in suitable occupied spaces, although it is not a complete measure of indoor air quality.

Humidity

Appropriate humidity control can support patient comfort and building performance.

Air Distribution

Supply and return/exhaust locations should be carefully coordinated to minimize undesirable airflow patterns.

Contaminant Control

Certain clinical areas require dedicated exhaust and controlled airflow to prevent contaminants from spreading to adjacent spaces.

Why Hospital HVAC Design Requires Specialized Engineering

A hospital HVAC system has to balance several competing requirements.

Increasing airflow can improve ventilation but may increase energy consumption. Higher-efficiency filtration can improve particulate removal but also increases pressure drop and therefore affects fan selection and energy requirements.

Therefore, HVAC engineers need to consider the complete system rather than selecting individual components independently.

A hospital AHU project should typically evaluate:

Room Function → Design Criteria → Airflow → Filtration → Pressure → Temperature → Humidity → Exhaust → AHU Selection → Duct Design → Controls → Testing & Commissioning

Hospital AHU Selection

Selecting the correct AHU capacity requires detailed engineering.

Important AHU selection parameters include:

• Total airflow

• Fresh-air quantity

• Return-air quantity

• Cooling capacity

• Heating capacity where applicable

• Sensible and latent loads

• External static pressure

• Internal pressure drop

• Filter pressure drop

• Fan efficiency

• Motor selection

• Coil selection

• Face velocity

• Casing construction

• Access requirements

• Noise considerations

• Control requirements

The AHU should be selected after completing the appropriate load calculations and airflow design.

Hospital HVAC Duct Design

Ductwork is a critical component of a hospital HVAC system.

The design should consider:

• Air velocity

• Pressure drop

• Leakage control

• Insulation

• Cleaning and maintenance access

• Air balancing

• Supply-air distribution

• Return-air paths

• Exhaust systems

• Fire and smoke requirements

• Cross-contamination prevention

For critical areas, duct and terminal arrangements should be coordinated with the filtration and pressure-control strategy.

Hospital HVAC Controls & BMS

Modern hospital HVAC systems can integrate with a Building Management System (BMS).

BMS integration can allow monitoring of:

• Supply-air temperature

• Return-air temperature

• Room temperature

• Relative humidity

• Differential pressure

• Filter differential pressure

• Fan status

• AHU status

• Alarm conditions

• Valve positions

• Damper positions

Monitoring requirements depend on the application and project specification.

Testing, Adjusting & Balancing

A hospital HVAC installation should not be considered complete merely because the AHU is running.

Testing, Adjusting and Balancing (TAB) helps verify whether the system is delivering the designed airflow.

Depending on the project, commissioning activities may include:

• Airflow measurement

• Supply-air balancing

• Return-air balancing

• Exhaust-air measurement

• Room pressure verification

• Temperature verification

• Humidity verification

• Filter differential-pressure checks

• HEPA integrity testing where applicable

• Control-system verification

• AHU performance checks

Testing requirements should be defined according to the project specification and applicable standards.

Hospital HVAC Maintenance

Regular HVAC maintenance is essential for reliable hospital operation.

Preventive maintenance may include:

• AHU inspection

• Filter inspection and replacement

• Coil cleaning

• Drain-pan cleaning

• Condensate-drain inspection

• Fan and motor inspection

• Belt inspection where applicable

• Bearing inspection

• Damper inspection

• Sensor calibration

• Differential-pressure monitoring

• Duct inspection

• HEPA filter inspection and testing where required

Maintenance intervals should be established according to equipment, operating conditions and the hospital’s maintenance program.

Why Choose Vipul HVAC Solution Pvt Ltd?

Vipul HVAC Solution Pvt Ltd provides HVAC engineering and contracting solutions for commercial, industrial and specialized facilities.

For hospital HVAC projects, our approach focuses on designing the complete air-conditioning and ventilation system around the functional requirements of each area.

Our Hospital HVAC Capabilities

• Hospital AHU systems

• HVAC design and engineering

• Air-conditioning load calculation

• Fresh-air ventilation systems

• HEPA filtration solutions

• Operation theatre HVAC

• ICU HVAC solutions

• Isolation-room HVAC

• Critical-area ventilation

• Hospital ducting systems

• AHU installation

• HVAC controls

• BMS integration

• Air balancing

• Testing and commissioning

• HVAC maintenance and AMC

Engineering-Focused Approach

We consider the relationship between:

AHU + Filtration + Airflow + Ductwork + Pressure + Temperature + Humidity + Controls

This integrated approach helps create an HVAC system that is aligned with the functional requirements of the healthcare facility.

Project Support

Vipul HVAC Solution Pvt Ltd can support projects through different stages, including:

1. Site assessment

2. HVAC requirement analysis

3. Load calculation

4. HVAC design

5. Equipment selection

6. AHU selection

7. Duct design

8. BOQ preparation

9. Installation

10. Testing and balancing

11. Commissioning

12. Maintenance support

For hospital HVAC requirements, contact Vipul HVAC Solution Pvt Ltd at +91 8000392000.

Hospital AHU Project Workflow

Step 1: Requirement Assessment

We understand the hospital’s building layout, clinical departments and room functions.

Step 2: HVAC Load Calculation

Cooling and ventilation requirements are calculated based on project parameters.

Step 3: Airflow Design

Supply, return, fresh-air and exhaust airflow requirements are established.

Step 4: Filtration Strategy

The appropriate filtration stages are selected according to the application.

Step 5: AHU Selection

AHU capacity, fan performance, coil capacity, filters and other components are selected.

Step 6: Duct & Air Distribution Design

The duct system and air terminals are designed to distribute conditioned air effectively.

Step 7: Installation

AHUs, ducts, piping, controls and related HVAC equipment are installed.

Step 8: Testing & Commissioning

The system is tested, balanced and commissioned according to the project requirements.
